Inicio ProductosGabinete del estante del servidor19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004

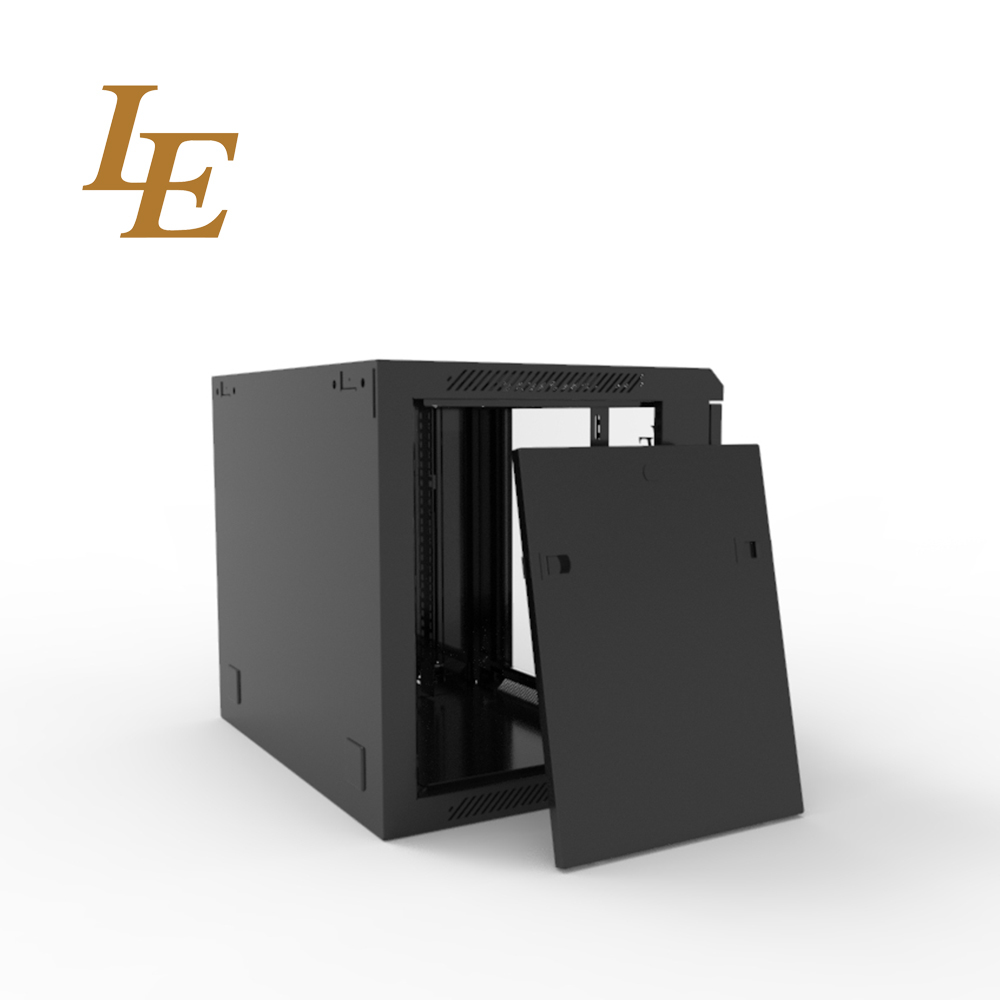

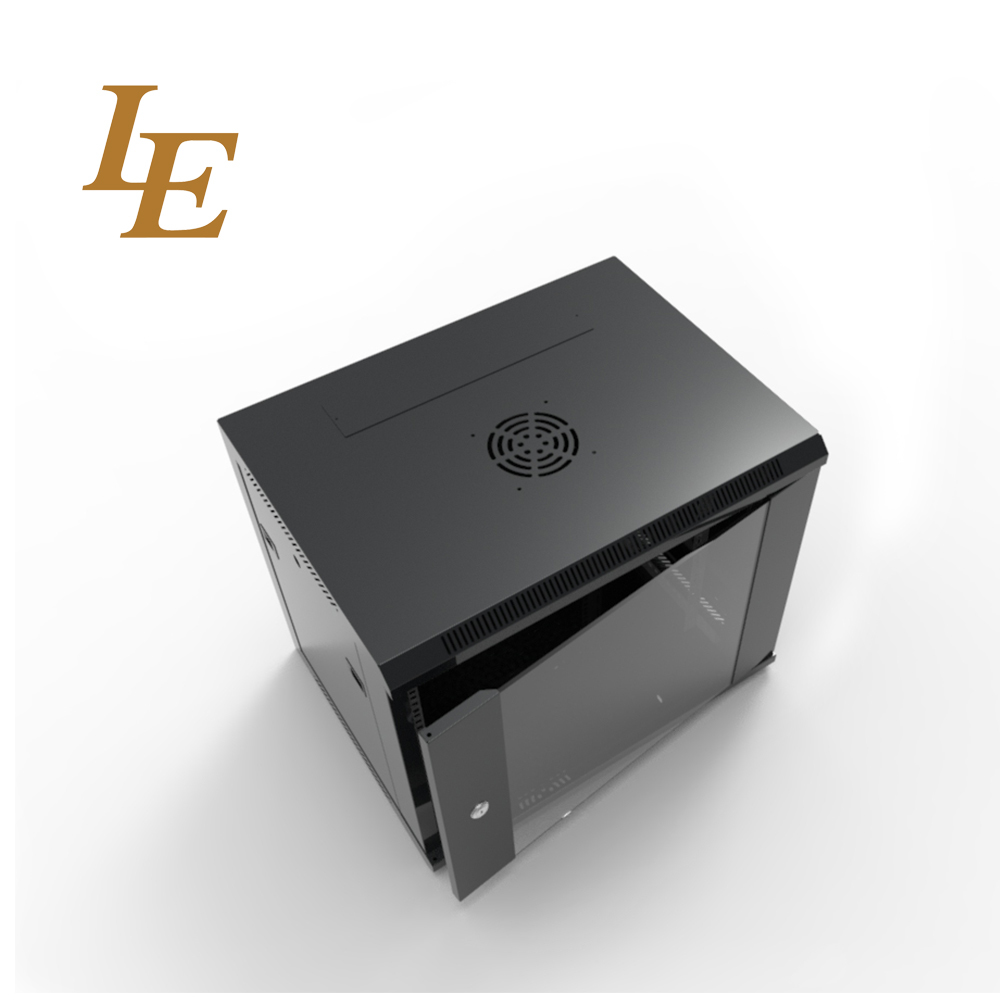

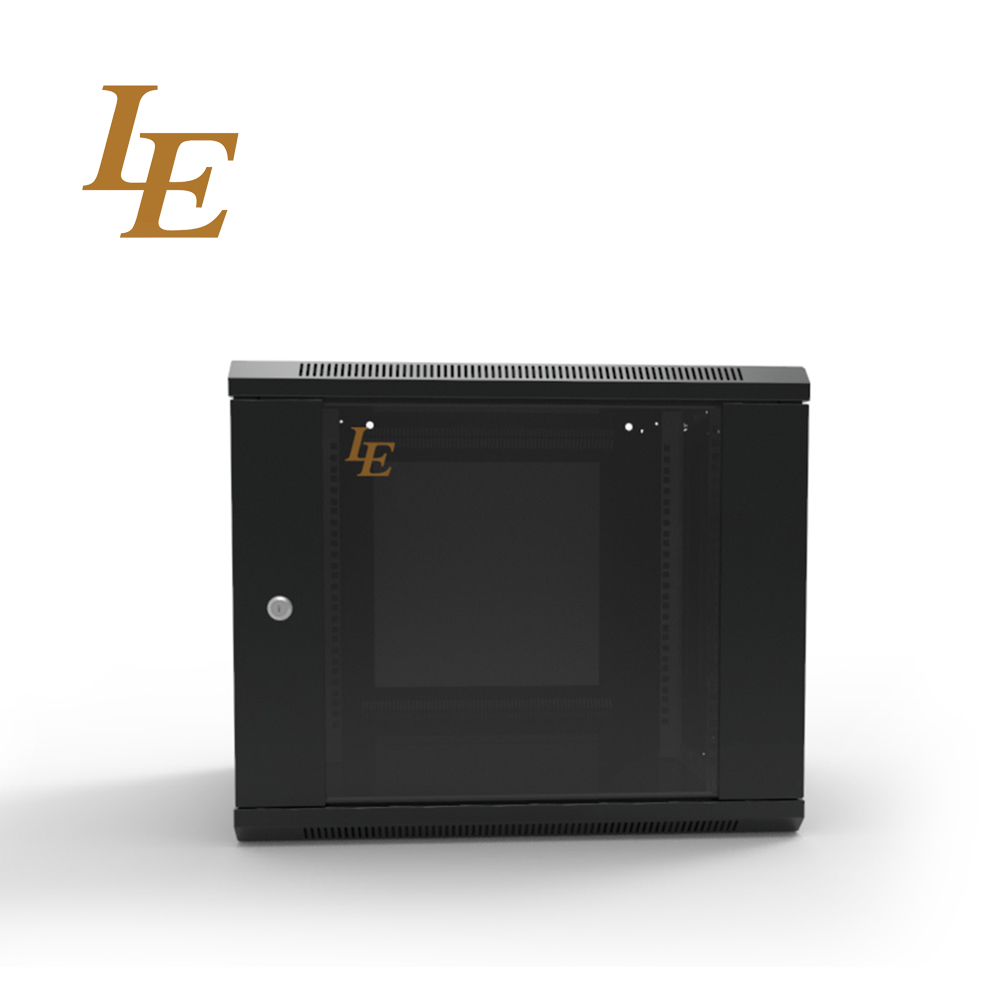

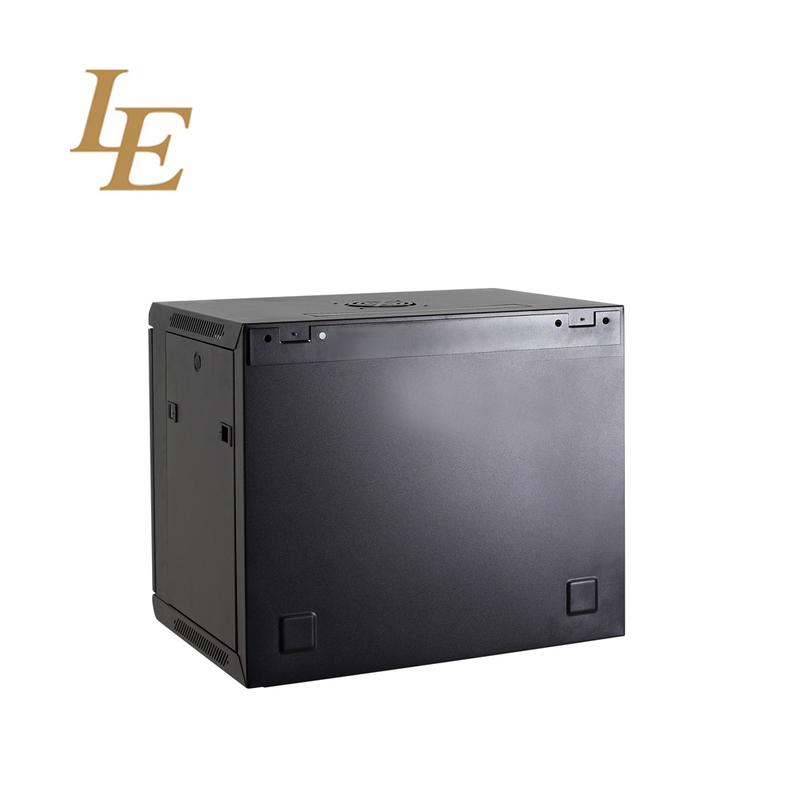

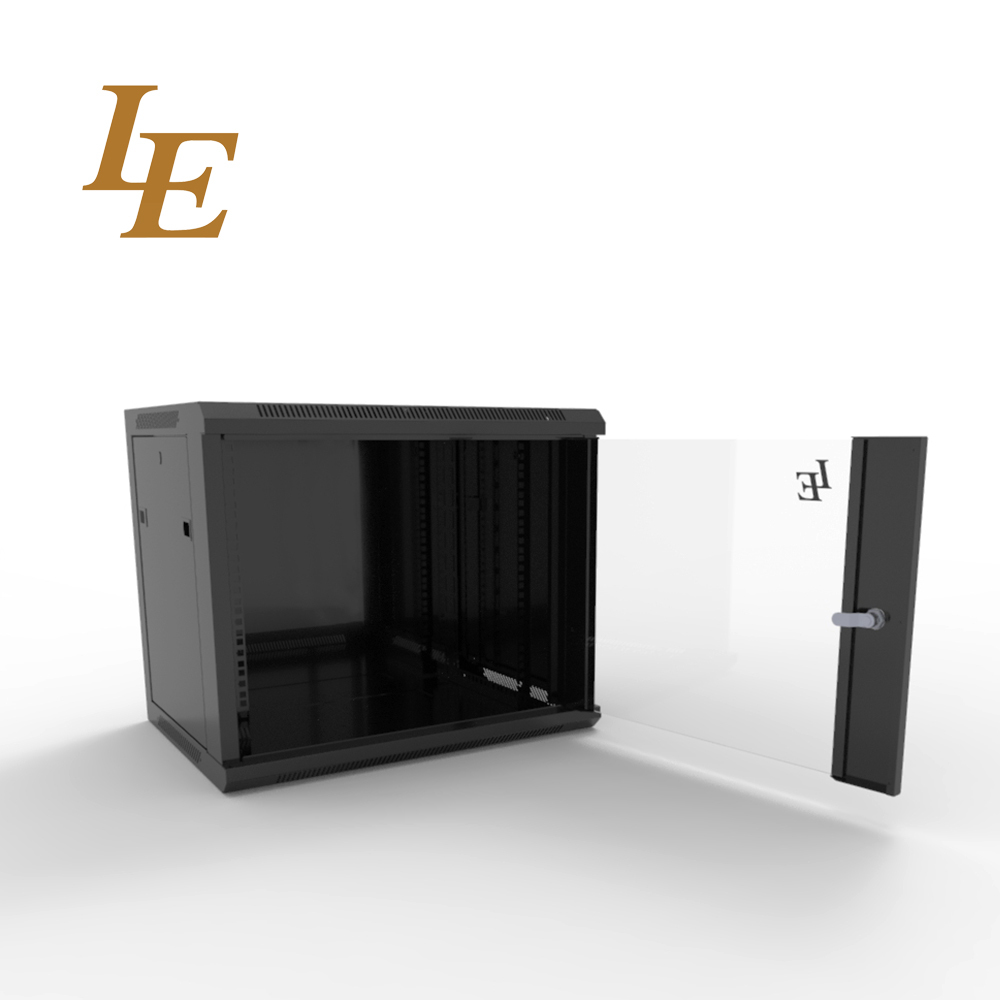

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004
19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004
Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: LE or OEM
Certificación: CE ROHS
Número de modelo: Se aplicará el procedimiento siguiente:
Cantidad de orden mínima: 10 pcs
Precio: USD25.5
Detalles de empaquetado: Embalaje montado
Tiempo de entrega: 30-45 días
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union
Capacidad de la fuente: 1000pcs por semana
Contactar ahora
Material: Acero laminado en frío de calidad SPCC Espesor: 1.2 mm
espesor del vidrio templado: 5 mm Capacidad de carga: 60 kgs
Grado de protección: IP20 Acabado superficial: Desengrasado, decapado, fosfatado, recubierto en polvo
Especificación de producto: 4U-27U Ancho: 600 mm
Profundidad: 450 mm, 600 mm Color: El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef
Resaltar:

19 inch wall-mounted server rack

,

9U server rack with fan

,

black server rack removable panels

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004


19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 019 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 119 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 2

S/N LE-WS1
Standard

Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard
Material SPCC quality cold rolled steel: Thickness:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 60kg
Degree of protection IP20
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification 4U-27U
Width: 600mm
Depth: 450mm, 600mm


19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 3

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 4

Main Structure


1. Installing Backboard

2. Mounting profile (L-shaped)

3. Cable entry plate

4. Side panel

5. Tempered glass front door

6. Tempered glass front door with

vented border

7. Tempered glass front door with

meshed border

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 5

FAQ

1. Q: Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Where is your factory located? How can I visit there?
A:Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or Shanghai airport, from home or abroad,
are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the every end. Our factory has gained
CE,ROHS,SGS authentication.

19 Inch 9-U Wall-Mounted Rack, 600x450mm, With 1 Fan And 4 Uprights, Removable Sides Panels, Black Color RAL9004 6
